AV286-01 Value Kit
Hover over image to zoom
)
Product Description
FAA/PMA Approved Parts Eligible Carburetors: 10-4978-1, 10-5050, 10-5126, 10-5142, 10-5220, 10-5257, 10-5267 or AVStar equivalent P/N with AV prefix |

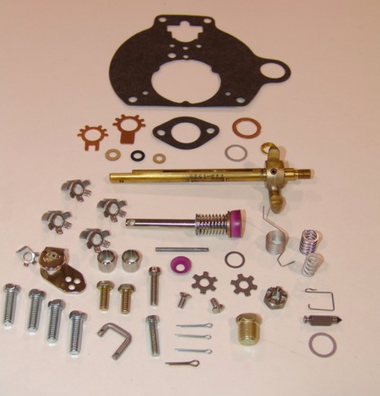

| Value Kit AV286-01 | ||
| MA-3PA Carburetor Part Description | Part # | # |
| Throttle Shaft | AV13-1520 | 1 |
| Screw - Throttle Adjustment | AV15-42 | 1 |
| Screw - Throttle Valve | AV15-58 | 2 |
| Screw - Pump Inlet Strainer | AV15-A14 | 2 |
| Screw - Throttle Body | AV15-B107 | 4 |
| Screw - Mixture Control Lever | AV15-B108 | 1 |
| Gasket Kit | AV16-696 | 1 |
| Rod - Pump Connection | AV17-383 | 1 |
| Spring - Throttle Adjustment | AV24-262 | 1 |
| Spring - Idle Adjustment | AV24-A1 | 1 |
| Spring - Throttle Opening | AV24-A10 | 1 |
| Shaft - Float Lever | AV32-32 | 1 |
| Packing - Pump Stem | AV44-49 | 1 |
| Bushing - Throttle Shaft | AV60-260 | 2 |
| Washer - Pump Inlet Strainer | AV78-121 | 2 |
| Washer - Pump Stem Retainer | AV78-388 | 1 |
| Washer - Mixture Control Lever | AV78-A109 | 1 |
| Washer - Throttle Body | AV78-A110 | 4 |
| Nut-Lock - Throttle Lever | AV81-311 | 1 |
| Pin-Cotter - Float Shaft | AV82-11 | 3 |
| Pin-Cotter - Throttle Open & Nut | AV82-14 | 1 |
| Drain Plug | AV99-8 | 1 |
| Lever - Pump | AV155-307 | 1 |
| Pump Plunger Assembly | AV194-593 | 1 |
| Float Valve - Seat Assembly | AV233-615 | 1 |
| FAA/PMA Approved Parts | ||
| Eligible Carburetors: 10-4978-1, 10-5050, 10-5126, 10-5142, 10-5220, | ||
| 10-5257, 10-5267 |
